Understanding the fundamental principles of material science and structural engineering often begins with grasping how internal forces react to external loads. One of the most critical concepts in this field is shear stress, which occurs when forces act parallel to the cross-section of a material, attempting to slide one part over another. Whether you are designing a bridge, selecting fasteners for machinery, or analyzing soil stability, knowing the equation for shear stress is essential for ensuring safety and structural integrity. By calculating how materials deform or fail under these parallel forces, engineers can make informed decisions about material selection and geometric design.
The Fundamentals of Shear Stress
Shear stress is fundamentally different from normal stress, which acts perpendicular to the surface. To visualize this, imagine a deck of cards: if you place your hand on the top and push sideways, the cards slide over each other. This is the essence of shear. In engineering, this occurs in various components, such as bolts subjected to double shear, beams undergoing transverse loading, or even fluids flowing over surfaces in fluid dynamics.
To accurately determine the intensity of these forces, we rely on a mathematical representation. The standard equation for shear stress is expressed as:
τ = F / A
Where:
- τ (tau) represents the shear stress, usually measured in Pascals (Pa) or Newtons per square meter (N/m²).
- F is the force applied parallel to the cross-sectional area.
- A is the cross-sectional area that is resisting the shear force.
Variables and Units in Shear Stress Calculations
Before performing any calculation, it is crucial to ensure that your units are consistent. If the force is in kilonewtons (kN), you must convert it to Newtons (N) before dividing by the area in square millimeters (mm²) or square meters (m²). Failure to align these units is the most common source of error in structural analysis.
| Symbol | Description | SI Unit |
|---|---|---|
| τ | Shear Stress | Pa (N/m²) |
| F | Shear Force | N |
| A | Resisting Area | m² |
Applying the Equation in Structural Engineering
When applying the equation for shear stress to real-world objects like bolts or rivets, you must account for how many planes are resisting the force. For example, a single-shear joint has only one interface plane, while a double-shear joint has two, effectively doubling the area (A) that resists the shear load. This distinction is vital in mechanical design to prevent catastrophic failures caused by shearing fasteners.
Furthermore, in the case of beams, the calculation becomes slightly more complex. You are likely to encounter the transverse shear stress formula for beams:
τ = VQ / It
Where:
- V is the shear force at the cross-section.
- Q is the first moment of area.
- I is the area moment of inertia.
- t is the thickness of the beam at the section where stress is being calculated.
⚠️ Note: Always verify if your loading condition is pure shear or if it involves a combination of bending moments and axial forces. Using the basic equation for shear stress (F/A) is only accurate for pure shear scenarios.
Advanced Considerations: Shear in Fluids
The equation for shear stress is not limited to solid materials. In fluid mechanics, Newton’s law of viscosity defines shear stress in a flowing fluid as proportional to the velocity gradient. This is expressed as:
τ = μ (du/dy)
In this context, μ represents the dynamic viscosity of the fluid, and du/dy represents the rate of change of velocity with respect to the vertical distance from the boundary. This demonstrates the versatility of the shear stress concept across different physical states.
Common Pitfalls and Best Practices
Many students and junior engineers often confuse average shear stress with maximum shear stress. The simple F/A calculation provides the average stress across a cross-section. However, in reality, shear stress distribution is rarely uniform. In a rectangular beam, for instance, the maximum shear stress is often 1.5 times the average value.
- Always check for stress concentrations near holes or notches.
- Use safety factors to account for material imperfections.
- Ensure that your material’s shear strength (yield strength in shear) is not exceeded by the calculated equation for shear stress.

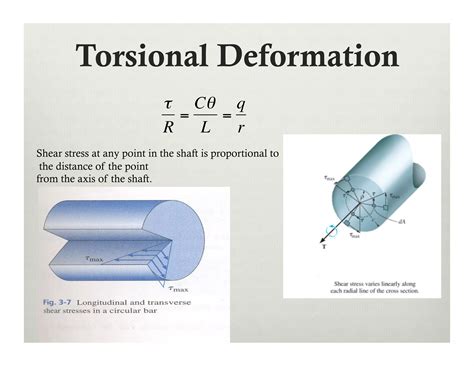

💡 Note: When calculating shear for circular sections like shafts, remember to use the correct area formula (πd²/4) to ensure accuracy in your cross-sectional calculations.
Practical Design Applications
Engineers utilize these calculations in almost every infrastructure project. By establishing the equation for shear stress during the preliminary design phase, they can determine the minimum thickness of steel plates or the required diameter of pins and bolts. Without these rigorous mathematical checks, structural components would either be dangerously undersized or wastefully oversized, leading to inefficient resource usage.
Consider the design of a bridge girder: the shear stress must be checked at the joints and along the web of the beam to prevent buckling or sliding failure. By strictly adhering to the fundamental principles outlined, you ensure that the load path is clearly defined and that the material can withstand the environmental and operational stresses imposed upon it over its intended service life.
Mastering the mathematical relationships that govern internal forces is the hallmark of a competent engineer. The equation for shear stress serves as a cornerstone of this knowledge, bridging the gap between theoretical physics and practical structural safety. Whether dealing with the simple shear of a mechanical fastener or the complex shear flow in a structural beam, the principles remain consistent. By applying these formulas with precision, accounting for the correct variables, and respecting the nuances of shear distribution, one can confidently navigate the challenges of material mechanics. Ultimately, these calculations are the silent guardians of structural reliability, ensuring that the objects and structures we interact with daily remain stable, functional, and safe under the diverse loads they are designed to support.
